PROJECT 06 / Consumer Product Design

SKIL Rechargeable Screwdriver Teardown.

Analyzing a rechargeable screwdriver from the outside in — studying first-use experience, ergonomics, internal components, mechanical architecture, manufacturing, and CAD reconstruction.

Use → Observe → Measure → Disassemble → Understand → Analyze Manufacturing → Reconstruct in CAD → Reflect

YEAR
2024
PRODUCT
SKIL Rechargeable Screwdriver · Model SD561801
TEAM
4-person project team
MY ROLE
Product Analysis · Teardown & Disassembly · Component Analysis · CAD / Mechanical Analysis

Understanding a consumer product from first use to internal architecture.

FINISHED PRODUCT→PHYSICAL TEARDOWN→CAD / INTERNAL ARCHITECTURE

SKIL SD561801 rechargeable screwdriver — studied from external interaction through internal mechanical architecture.

MY CONTRIBUTION · 4-PERSON TEAM

Product Analysis

  • First-use analysis
  • Task / interaction observations
  • Ergonomic and affordance analysis

Mechanical Analysis

  • Teardown
  • Component identification
  • Decomposition
  • Product architecture analysis
  • Manufacturing-process investigation

Engineering Communication

  • CAD analysis
  • Assembly / exploded-view communication
  • Documentation of component relationships
01

Understanding the Product from the Outside In

A finished consumer product hides hundreds of design decisions.

Before opening the screwdriver, our team first looked at how a user encounters and operates it: what is immediately understandable, what feedback the product provides, how it is held, and what setup is required.

We then disassembled the product to connect those external interactions to the components and mechanisms inside.

SKIL SD561801
CENTRAL QUESTION

How do user-facing design decisions connect to the mechanical and electrical architecture hidden inside the product?

02

First Use Before Teardown

We began by using the screwdriver as a new user would rather than immediately taking it apart.

The product required relatively little setup: select the direction of rotation, choose a bit, insert it into the magnetic holder, position the tool, and press the trigger.

FIRST-USE OBSERVATION

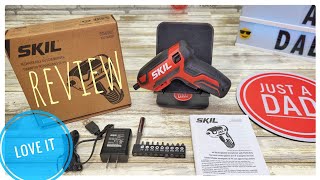

WHAT COMES IN THE BOX
MAGNETIC BIT HOLDER

The bit attaches with minimal setup.

DIRECTION SELECTOR

The control changes between fastening, removing, and a locked state.

TRIGGER FEEDBACK

Sound, vibration, and visible bit rotation confirm activation.

INTEGRATED LED

The light provides local illumination around the work area.

Our team was able to begin using the screwdriver without first reading the manual, largely because it relied on familiar hand-tool conventions. This was a first-use observation, not formal usability validation.

03

How the Product Communicates Use

The external form communicates much of the interaction before the user understands anything about the internal mechanism.

The pistol-style grip, trigger placement, directional control, magnetic bit interface, motor feedback, and lighting all contribute to how the tool is understood and operated.

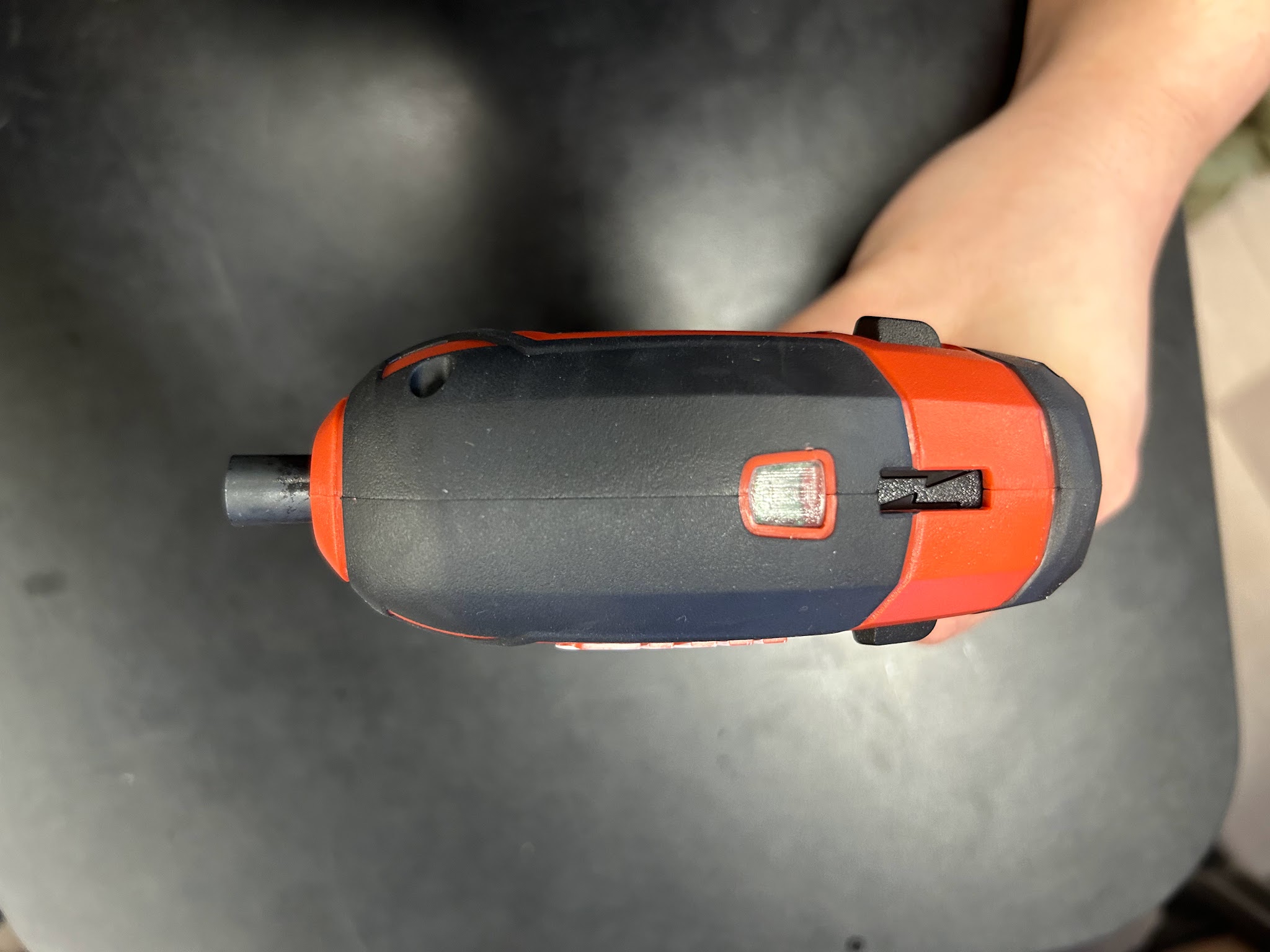

DIRECTION SELECTOR + REAR CONTROLS

GRIP BREAKDOWN

INDEX FINGER

Operates the trigger.

MIDDLE / RING / PINKY

Wrap around and stabilize the handle.

THUMB

Supports the rear of the tool and helps stabilize the grip.

AFFORDANCE

The familiar hand-tool form suggests the intended grip.

FEEDBACK

Motor sound, vibration, light, and rotation communicate activation.

CONTROL

The direction selector changes the output direction and provides a lock state.

ACCESSIBILITY OBSERVATION

Powered rotation reduces the repetitive wrist movement required by a conventional manual screwdriver.

04

Breaking the Interaction into Tasks

Breaking the interaction into individual actions helped us identify where the product reduces user effort and where the tool still depends on compatibility between the user, accessory, fastener, and task.

  1. Select task
  2. Select bit
  3. Insert bit
  4. Set rotation
  5. Position tool
  6. Press trigger
  7. Fasten / remove
  8. Release
  9. Change or remove bit

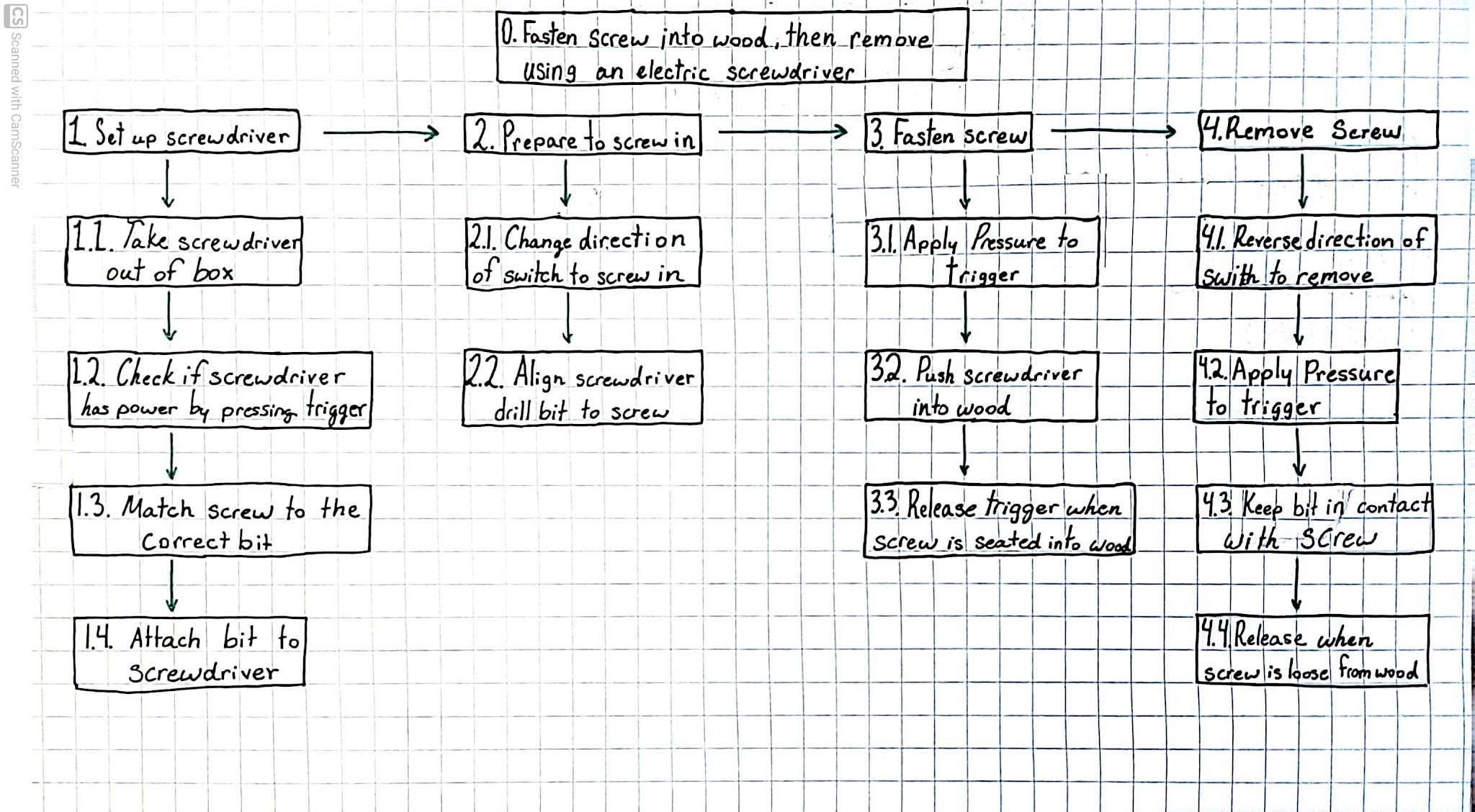

ORIGINAL TASK ANALYSIS

The original screw selected during our first-use test did not match the available bits, reinforcing that even a simple tool is part of a larger use system.

05

Documenting the Physical Envelope

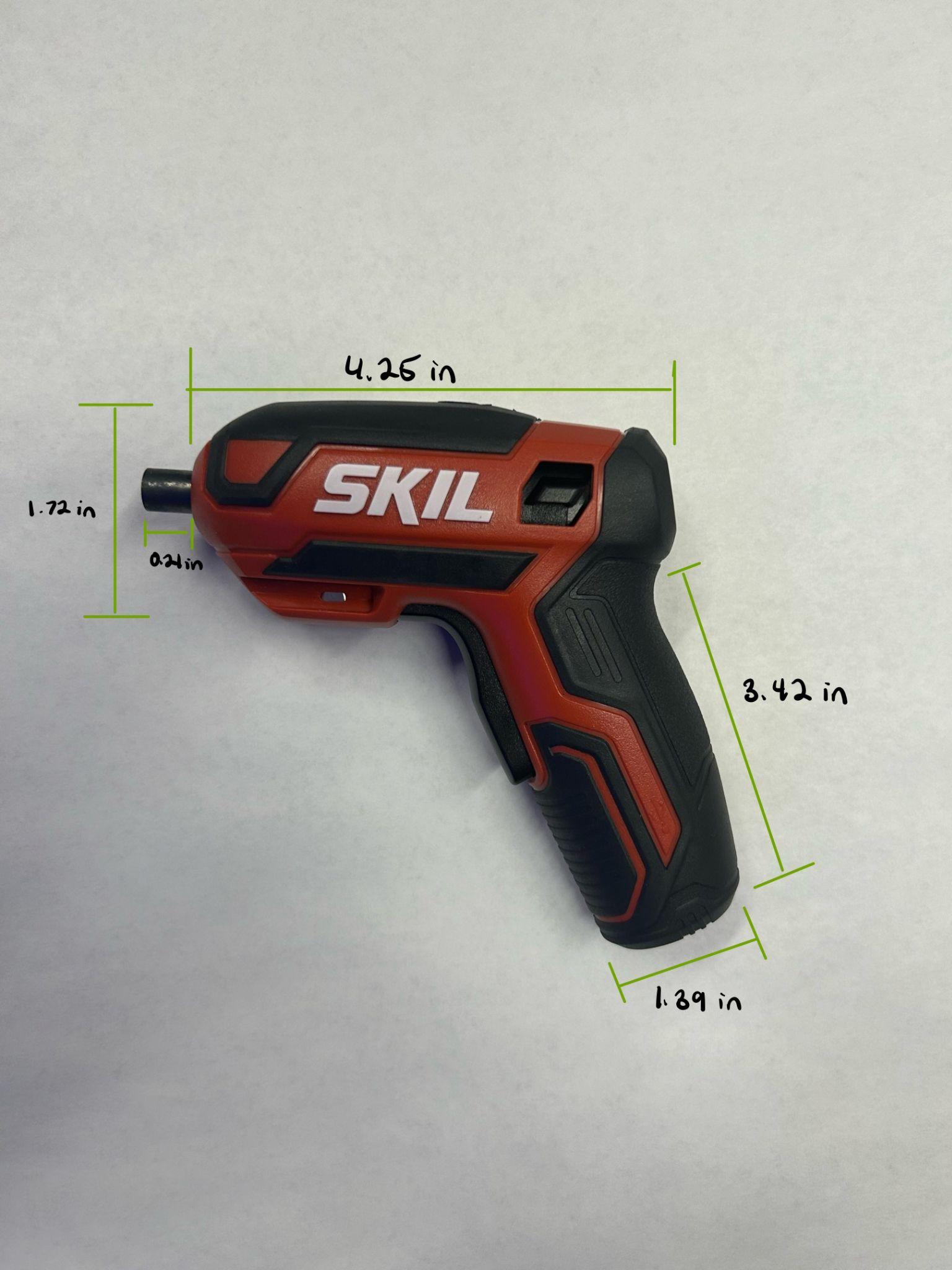

SIDE PROFILE

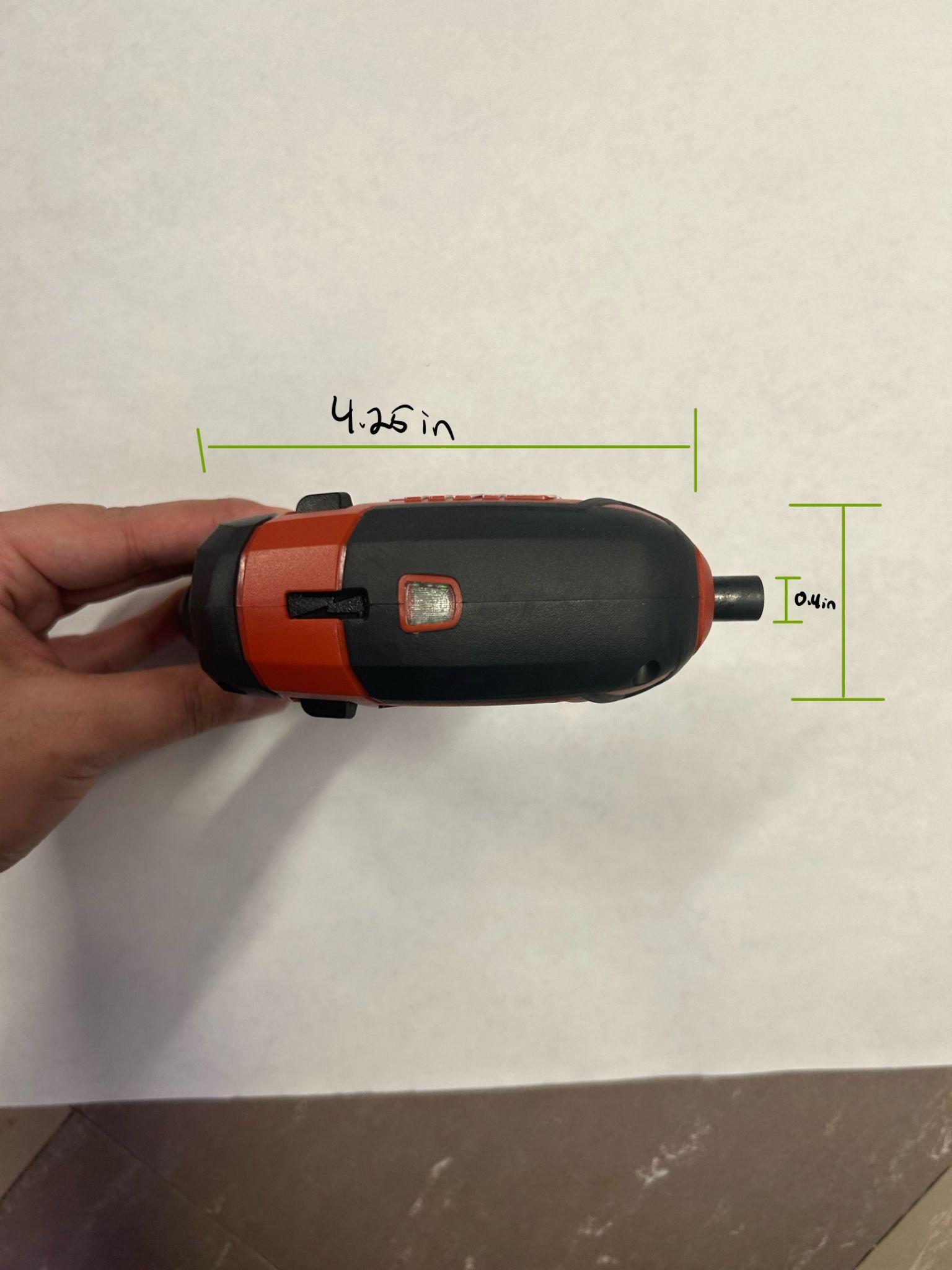

FRONT WIDTH

Before disassembly, we documented the external geometry and major dimensions of the screwdriver. Those measurements gave us a reference for understanding how the internal components were packaged inside the ergonomic outer housing and later supported the CAD reconstruction.

06

From Housing to Hardware

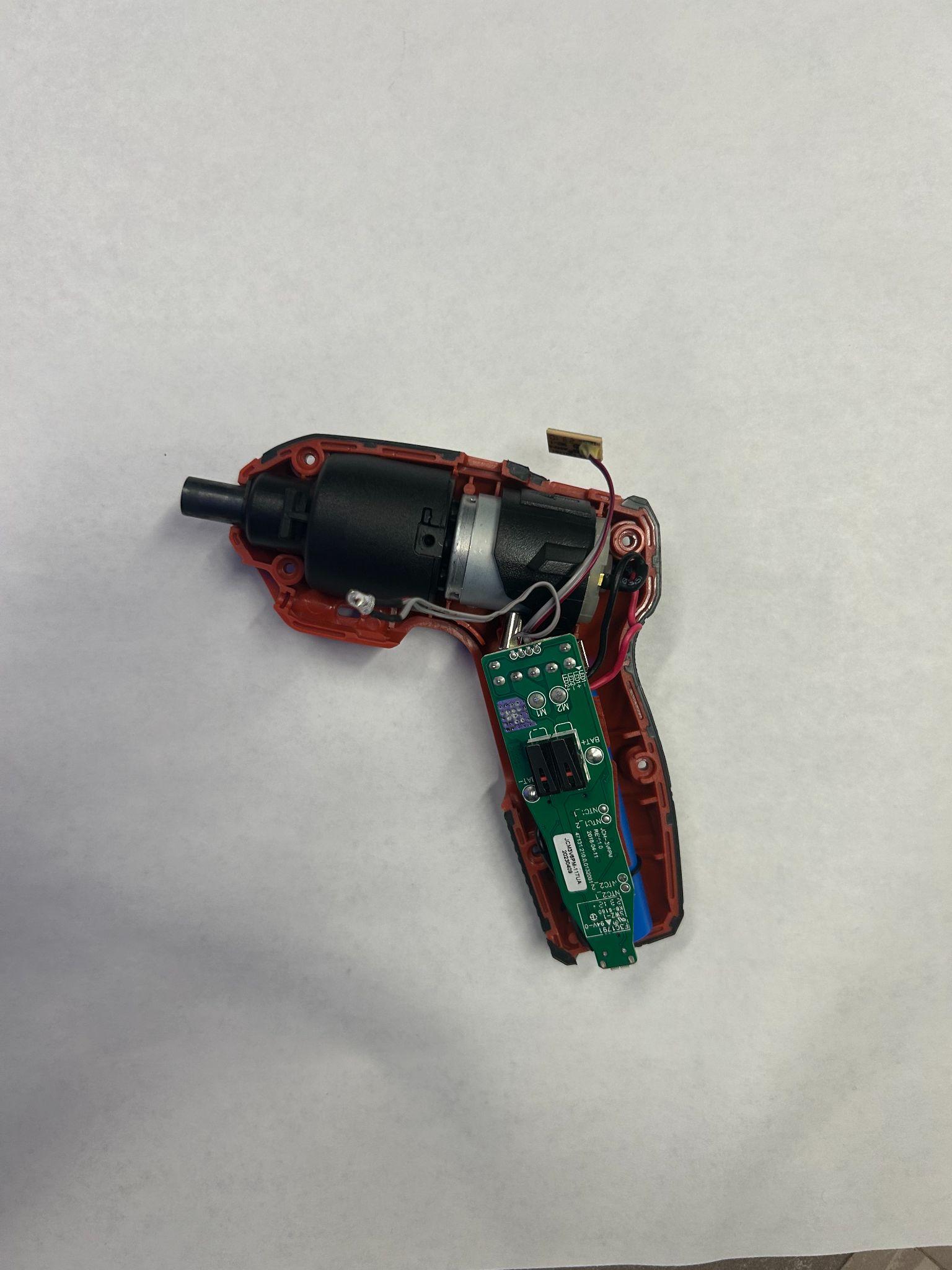

HOUSING HALF REMOVED

Removing the housing exposed how tightly the screwdriver packages its electrical and mechanical subsystems.

Inside the outer shell, the battery, wiring, circuit board, controls, motor, transmission, and output components occupy a relatively small volume while still fitting within the handheld form.

  1. 01

    Remove housing screws

  2. 02

    Separate housing halves

  3. 03

    Remove motor + output assembly

  4. 04

    Remove battery + electronics

  5. 05

    Separate controls

  6. 06

    Open motor / transmission

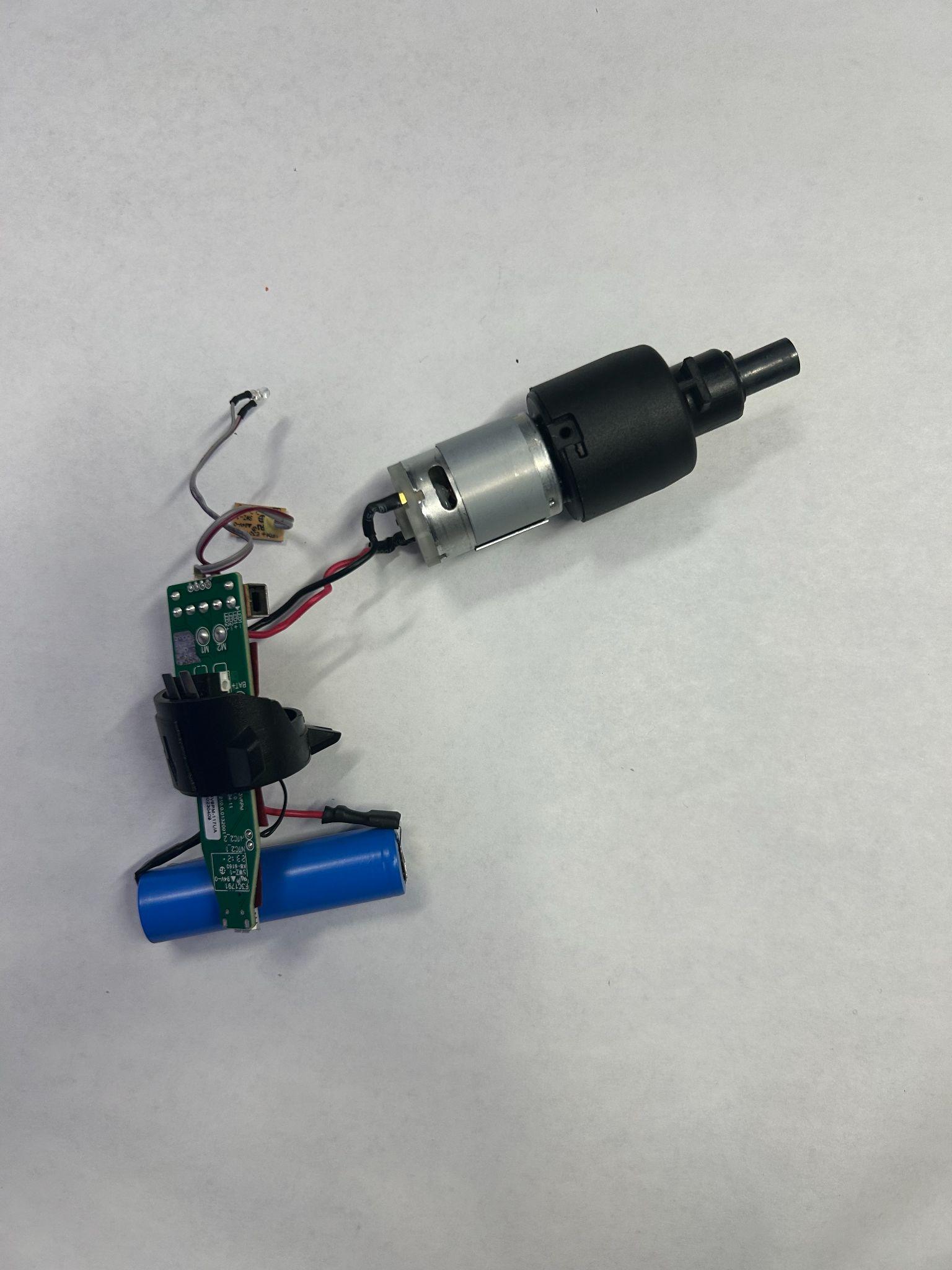

MOTOR + OUTPUT ASSEMBLY
07

Mapping the Internal Architecture

Decomposing the screwdriver into individual components made the product architecture much easier to understand.

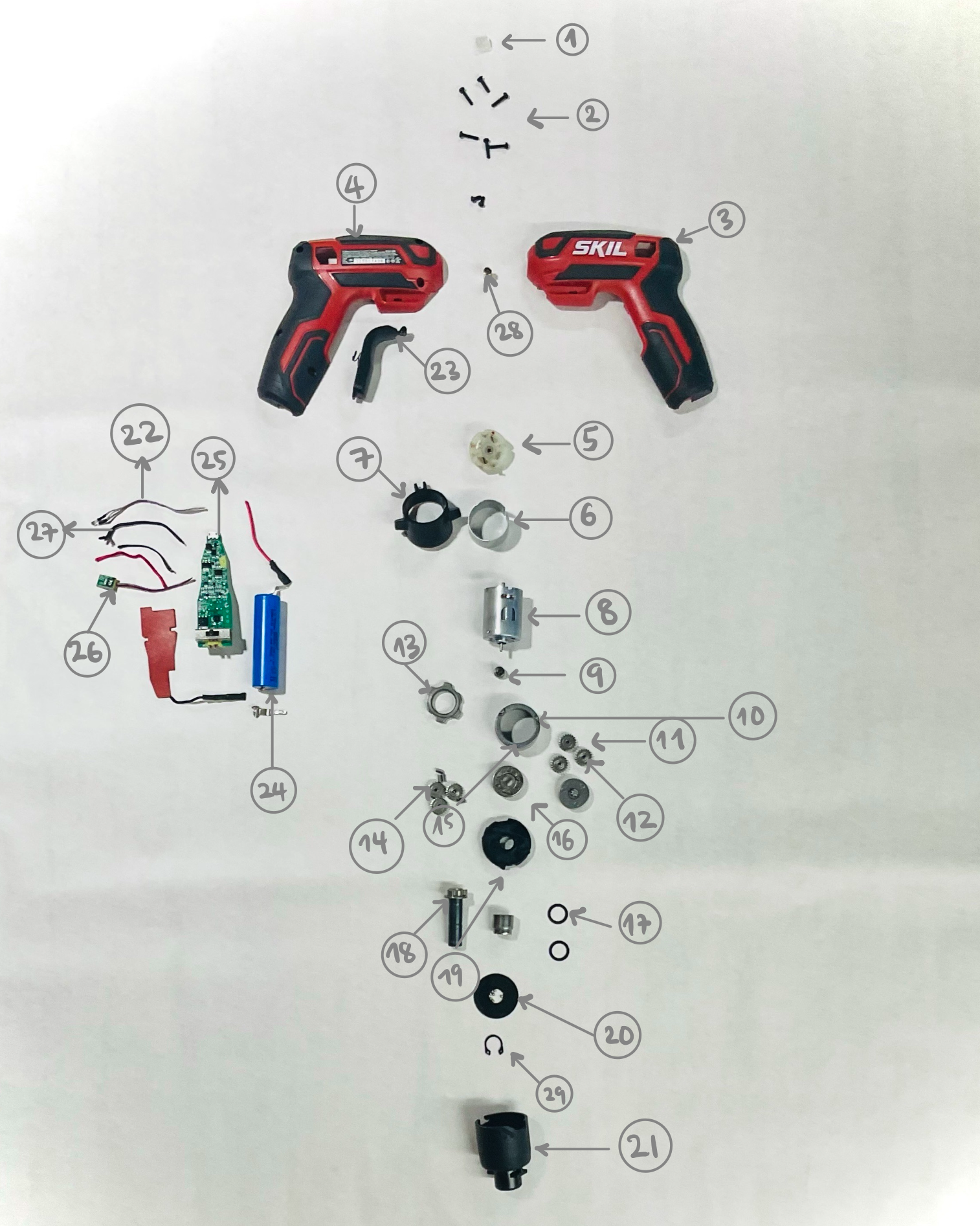

PHYSICAL EXPLODED VIEW

A relatively simple external interaction is supported by a tightly coordinated combination of structural, electrical, motor, transmission, and output components.

STRUCTURE

Housing halves · Motor cover · Output housing

USER CONTROLS

Trigger · Direction selector

ELECTRICAL

Battery · Circuit board · Wiring · LED system

MOTOR

Coils · Magnets · Motor hardware

TRANSMISSION

Planetary gears · Ring gears · Gear carriers · Bearings

OUTPUT

Shaft · Bit interface

FASTENERS

Housing screws · Internal retaining components

08

How the System Works

Looking at the product as a flow of energy, information, and mechanical output connected individual parts back to the task performed by the complete tool.

  1. USER INPUT

    Trigger · Direction selection

  2. ELECTRICAL ENERGY

    Battery · Control circuitry

  3. ACTUATION

    Electric motor

  4. TRANSMISSION

    Gear system

  5. MECHANICAL OUTPUT

    Rotating screwdriver bit

  6. USER FEEDBACK

    Light · Sound · Vibration · Visible motion

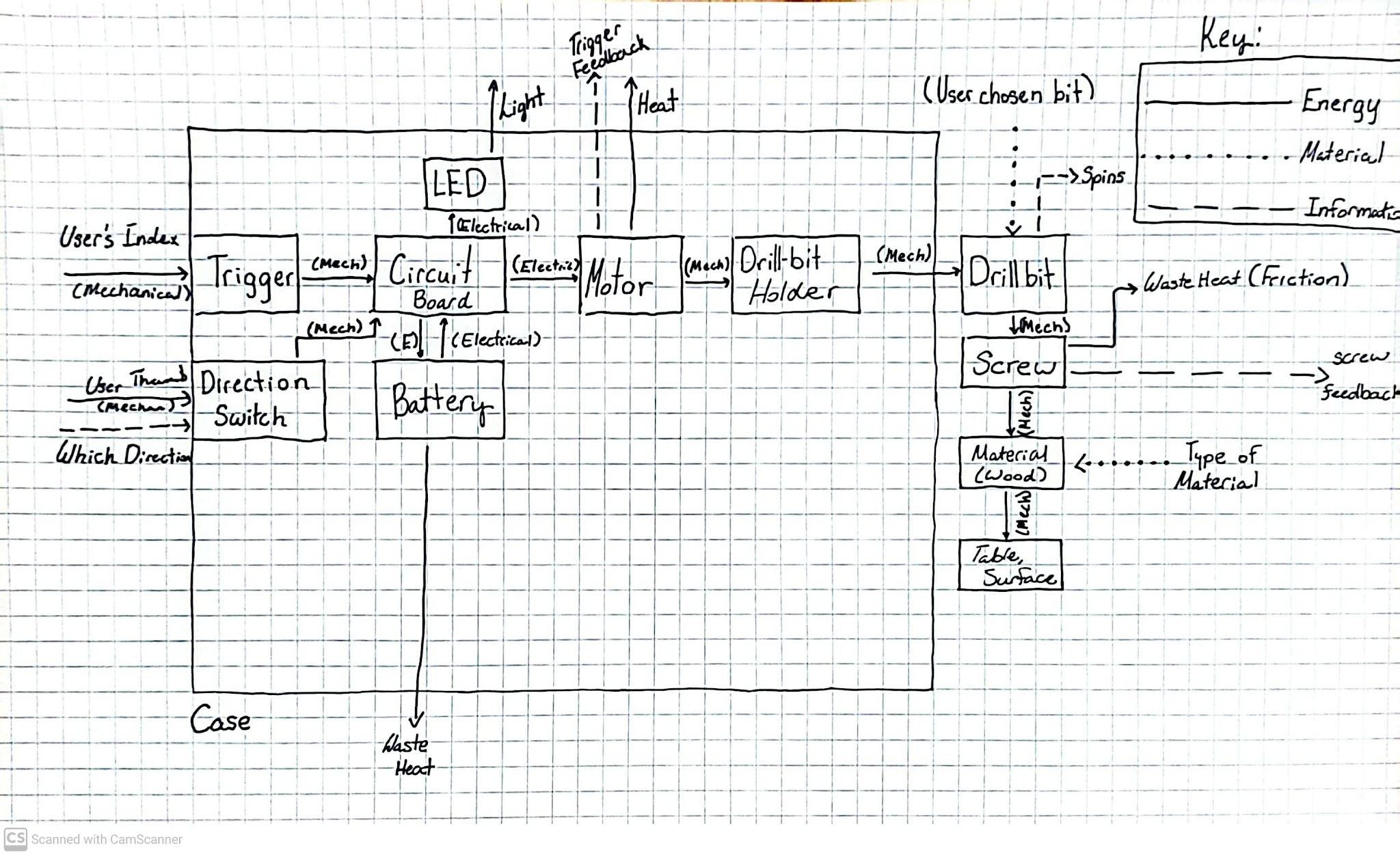

ORIGINAL FUNCTION STRUCTURE
09

Inside the Gear System

One of the most mechanically interesting parts of the teardown was the compact gear system between the motor and output shaft.

The assembly included planetary gears, ring gears, carriers, bearings, and supporting components arranged inside a small cylindrical package.

MOTOR → TRANSMISSION → OUTPUT

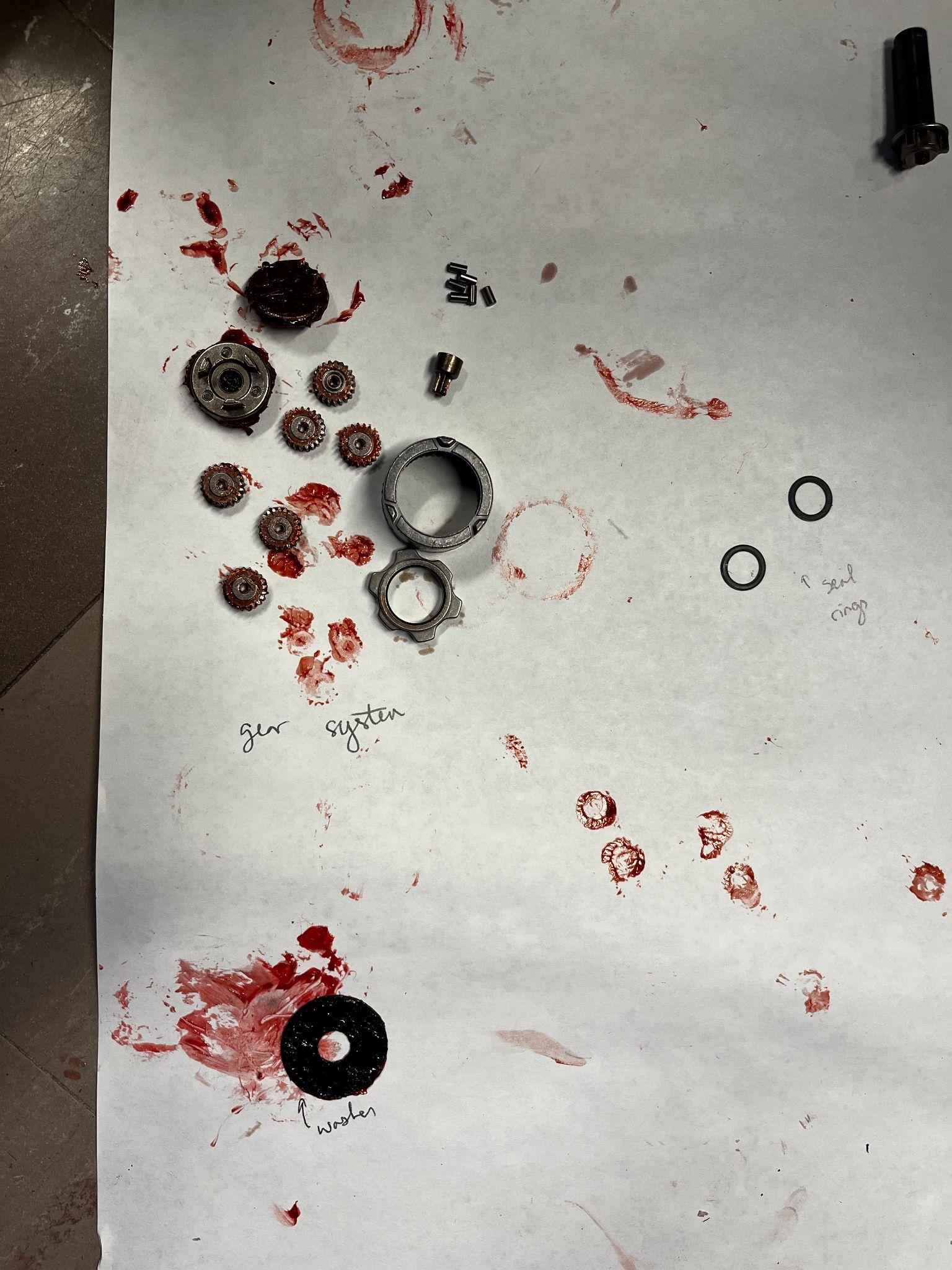

GEARS, BEARINGS + CARRIERS
COMPACT PACKAGING

Multiple transmission components fit within the narrow front section of the screwdriver.

POWER TRANSFER

Motor rotation passes through the transmission before reaching the output shaft.

COMPONENT INTEGRATION

Gears, bearings, carriers, and housing features work together as one compact subsystem.

10

How the Product Was Likely Manufactured

Based on component geometry, material appearance, and common high-volume manufacturing methods, we identified likely production processes.

PLASTIC HOUSING

Likely: Injection molding. Complex ergonomic geometry and high-volume production.

PLASTIC CONTROLS

Likely: Injection molding. Small repeatable parts with integrated geometry.

MOTOR COILS

Likely: Wire winding. Conductive wire wrapped around the motor structure.

METAL MOTOR COVER

Likely: Sheet-metal stamping / drawing. Thin formed metallic enclosure.

FASTENERS

Likely: Heading and thread rolling. Typical high-volume manufacturing for threaded fasteners.

Gears and other transmission components were harder to attribute to a single process from inspection alone, so the team treated those estimates as open questions rather than conclusions.

These are team engineering estimates, not confirmed SKIL manufacturing specifications.

11

From Teardown Back to CAD

After understanding the physical product through measurement and disassembly, the team reconstructed the screwdriver in CAD.

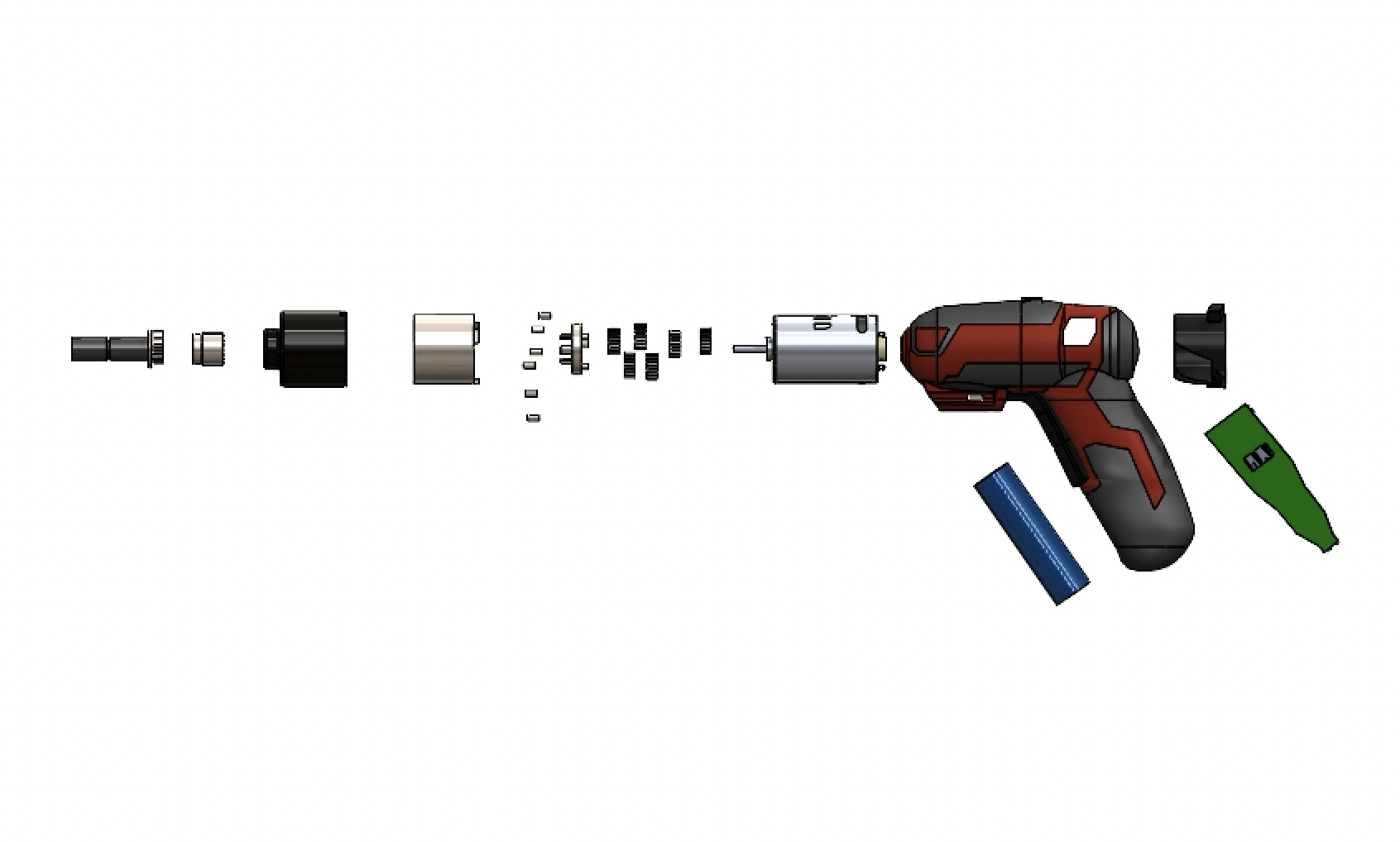

EXPLODED CAD — ASSEMBLY ARCHITECTURE

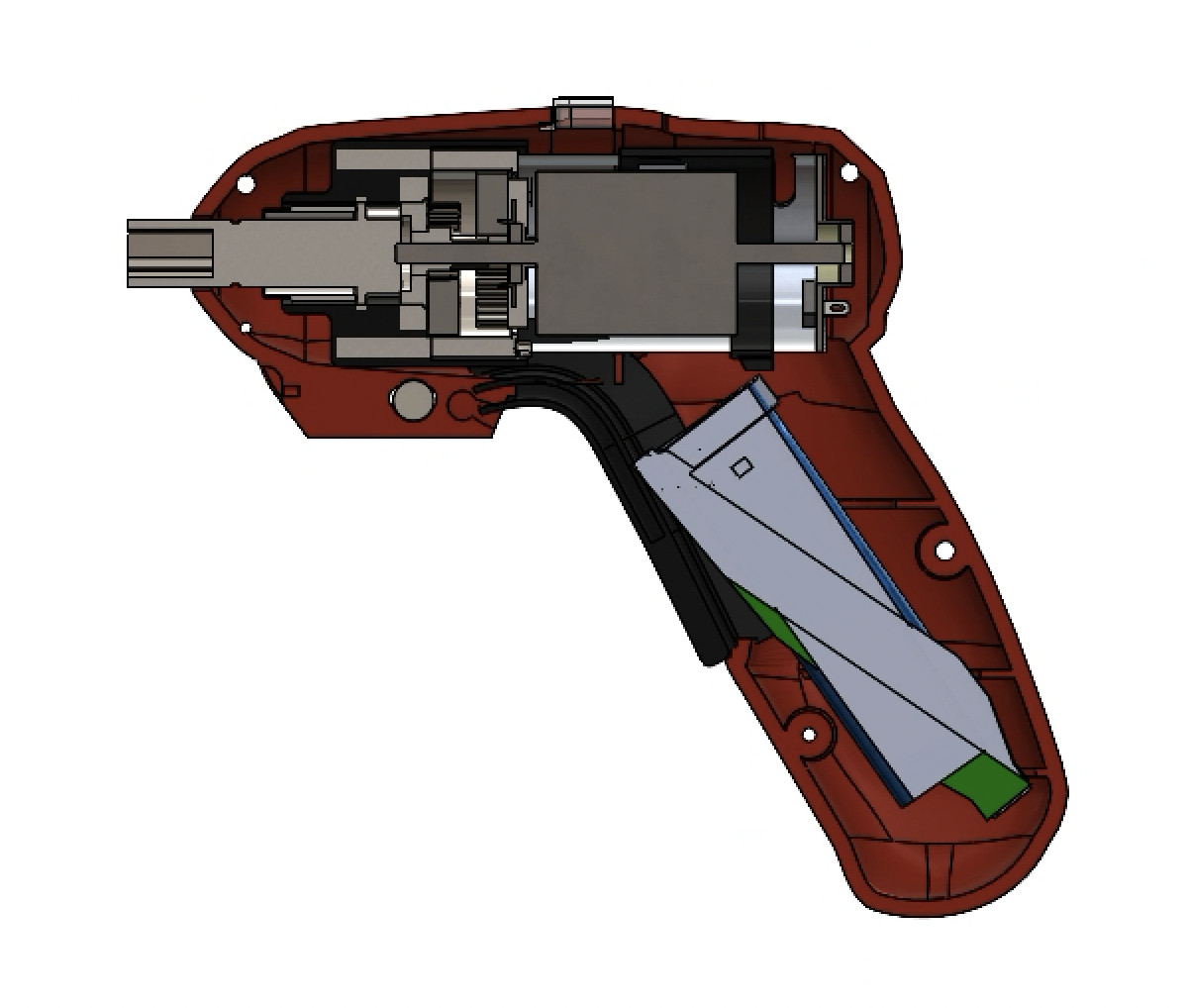

CAD CUTAWAY — INTERNAL PACKAGING

The assembled views capture the external product geometry, while the cutaway and exploded models communicate how major components fit together inside the housing.

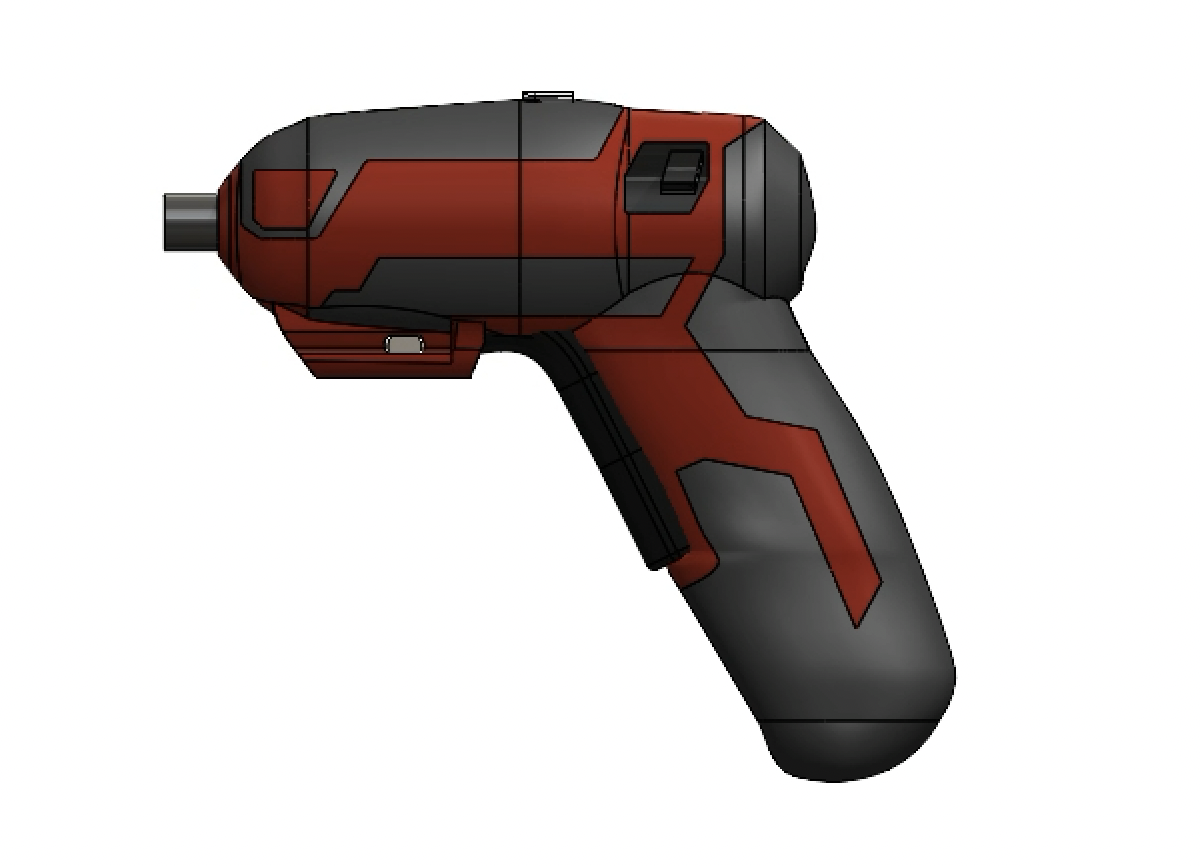

SIDE

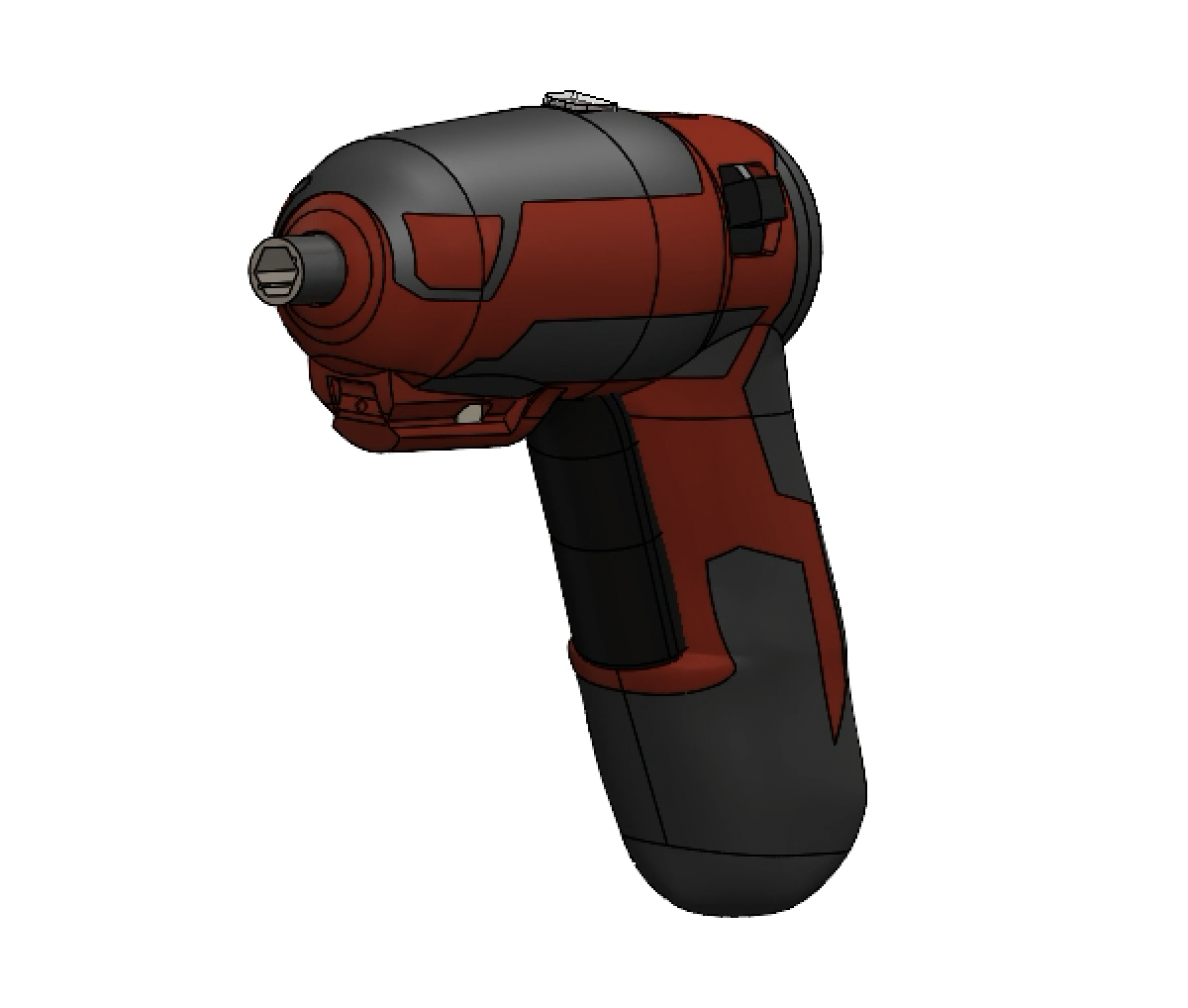

FRONT THREE-QUARTER

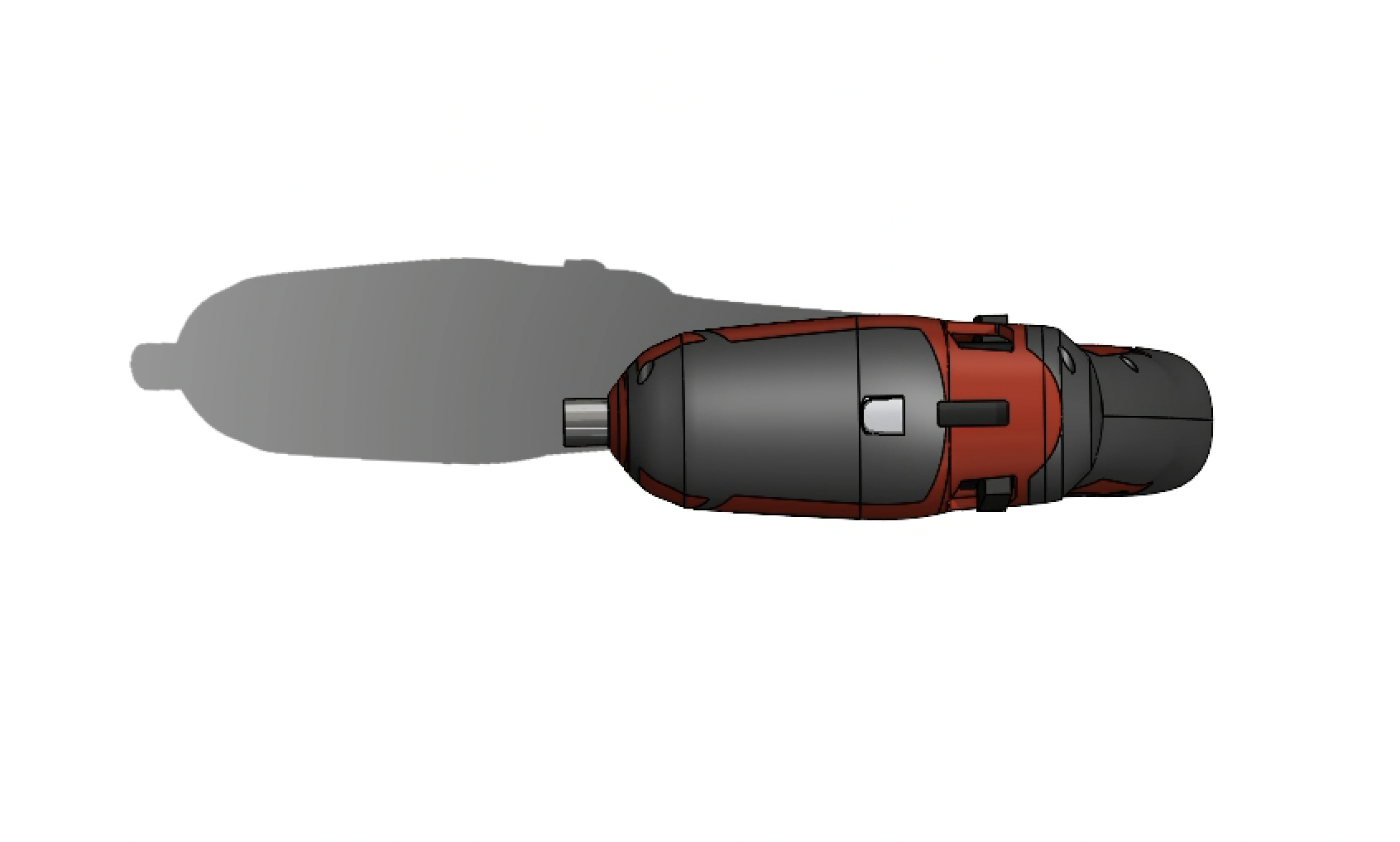

TOP

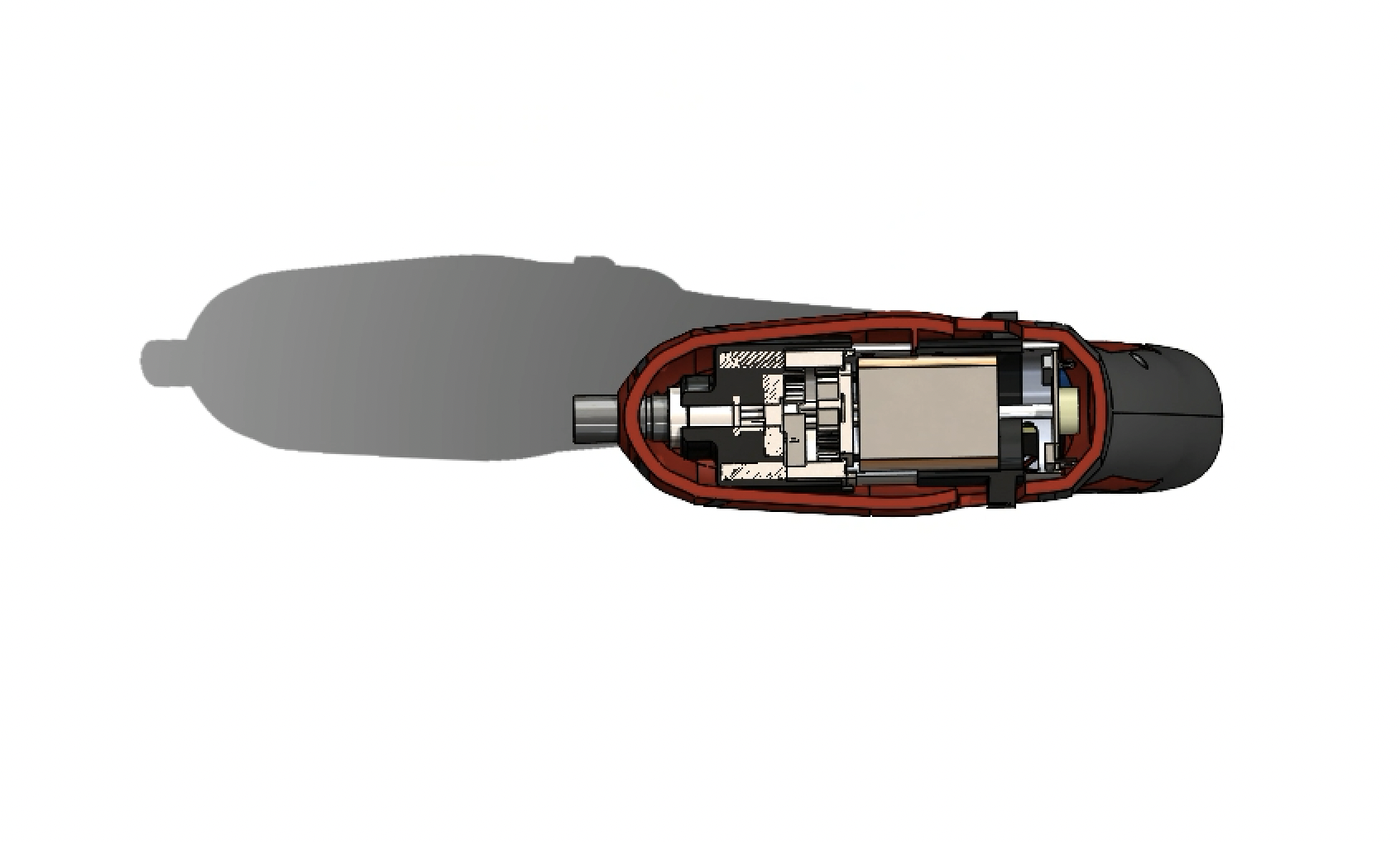

BOTTOM CUTAWAY
MEASUREMENT

Translate physical geometry into digital form.

PACKAGING

Understand how internal components occupy the housing.

ASSEMBLY

Model relationships between product subsystems.

EXPLODED VIEW

Communicate assembly order and component architecture.

12

Engineering Decisions Become User Experience

  1. Simple outside, complex inside

    A small number of external controls are supported by a much more complex internal system.

  2. Familiarity reduces learning

    The recognizable tool form, trigger, direction selector, and magnetic bit interface allow users to draw on previous experience.

  3. Packaging shapes the product

    Battery, motor, transmission, circuitry, wiring, controls, and output hardware all have to fit inside an ergonomic handheld form.

  4. Small engineering features matter

    The magnetic bit holder, LED, trigger position, rotation control, grip geometry, and motor feedback directly affect the user experience.

13

Opportunities for Further Development

BIT ORGANIZATION

Could bit identification and storage be made even easier during common household tasks?

CONTROL VISIBILITY

Could the direction / lock state be communicated more clearly from the normal grip position?

ERGONOMICS

How do trigger force, handle dimensions, weight, and control position perform across users with different hand sizes and strength?

ACCESSIBILITY

How does the powered design perform for users with reduced grip strength or dexterity?

REPAIRABILITY

Could battery or internal-component replacement be made easier without negatively affecting durability, cost, or assembly?

These are potential areas for additional testing, not validated deficiencies in the existing product.

14

What I Learned

This project changed the way I look at consumer products.

A rechargeable screwdriver appears simple from the outside, but taking it apart revealed how many mechanical, electrical, manufacturing, packaging, and Human Factors decisions are contained within a small handheld tool.

The most useful part of the teardown was moving between different levels of the same product: observing how someone uses it, identifying the cues and feedback they rely on, opening the housing, understanding the mechanisms inside, and then reconstructing those relationships in CAD.

That connection between user interaction and engineering architecture is one of the areas that interests me most in consumer product development.

Good product engineering connects the mechanisms inside a product to the experience outside it.
